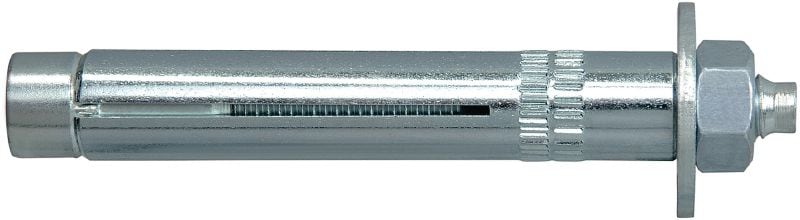

HKH Hollow deck anchor

Economical hollow deck anchor with approval for fastening sprinklers to pre-stressed concrete hollow decks

Head configuration: Externally threaded
Environmental conditions: Indoor, dry conditions
Approvals / test reports: DIBt, Fire, VDS

No products available

Please Contact us to find a solution.

Technical Data

Head configuration

Externally threaded

Environmental conditions

Indoor, dry conditions

Approvals / test reports

DIBt, Fire, VDS

Material, corrosion

Carbon steel, zinc-plated

Type of fastening

Through-fastening

Documents

Features & Applications

Features

Highest safety and reliability thanks to the visual setting mark
No exhausting overhead hammering thanks to the low expansion force required
Through fastening possible
Machine setting tool available for faster fastening
Compliant with all the relevant approvals: DIBt, VdS

Applications

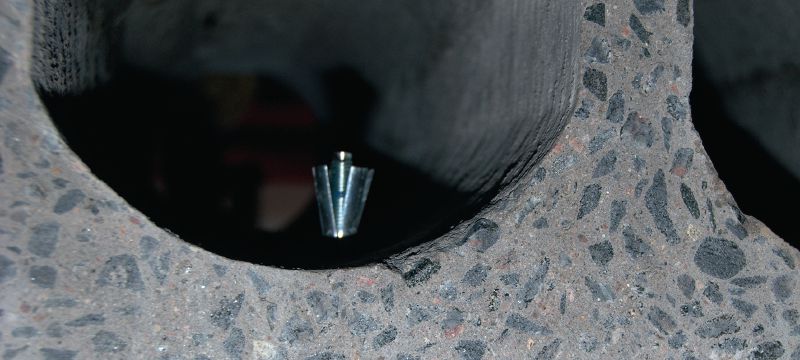

All fastenings in hollow slab concrete, especially on ceilings
Sprinkler installations
Single-point pipe fastener
Fastening channels to ceilings for multiple pipe installations
Suspended ceilings

For approval or certificate information, please see individual items.
