HDA-TF Undercut anchor

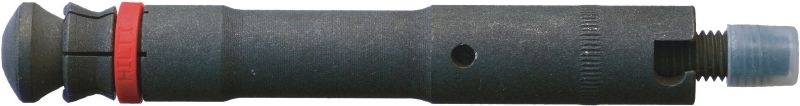

Undercut anchor HDA-TF M16x190/40 #339364

Ultimate-performance through-set undercut anchor for dynamic loads (sherardised steel)

  • Material, corrosion: Carbon steel, HDG (hot-dip galvanised)/sherardised
  • Head configuration: Externally threaded
  • Max. fixture thickness at standard embedment depth: 40 mm

Choose options

Anchor size
  • M16
Standard embedment depth
  • 190 mm
Max. fixture thickness at standard embedment depth
  • 40 mm
  • 60 mm
Pack size
  • 4 pc
Product options
Quantity
Packs
Total Piece
4
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
SR 2,752.00
SR 688.00 / 1 Piece

Technical Data

Material, corrosion
Carbon steel, HDG (hot-dip galvanised)/sherardised
Head configuration
Externally threaded
Max. fixture thickness at standard embedment depth
40 mm
PROFIS software
No

Documents

Features & Applications

Features

  • Combines the advantages of a post-installed mechanical anchor, i.e. flexibility and immediate loading, with the performance of a cast-in-place headed stud
  • Close spacing and small edge distances thanks to very low expansion forces
  • Self-undercutting facilitates fast and reliable installation – no separate undercutting tool or handling needed
  • The resulting keying effect helps to provide a secure hold in cracked concrete under dynamic loading
  • Manufactured under the NQA-1 nuclear quality program

Applications

  • Safety-relevant, heavy-duty fastenings for all dynamic loading in cracked or uncracked concrete, including applications in nuclear power plants

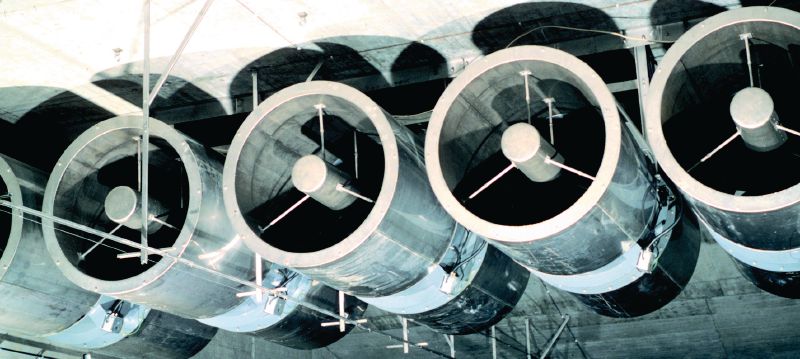

  • Examples: supports for heavy pipes, safety barriers, industrial machines, crane rails, dorm structures, crash barriers, roof fastening points, elevator tracks, bridge retrofitting etc.
