HDA-PR Undercut anchor

Ultimate-performance pre-set undercut anchor for dynamic loads (stainless steel)

Product options

Quantity

Total Pieces

NaN

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

Price loading error occured

Please contact us

Technical Data

Material, corrosion

Stainless steel, A4

Head configuration

Externally threaded

Approvals / test reports

ETA, Seismic

Fatigue loading

Yes

PROFIS software

Yes

Type of fastening

Pre-fastening

pdf Technical data sheet for the HDA design anchor, English [ 1.3 MB ]

pdf Solutions for fastening: Improved design for anchors under shear loading, English [ 1.6 MB ]

Combines the flexibility and immediate loading of a post-installed mechanical anchor with the performance of a cast-in-place headed stud
Close spacing and small edge distances thanks to low expansion forces
Self-undercutting facilitates fast and reliable installation without the need for additional tools
The keying effect provides a secure hold even in cracked concrete under dynamic loading
Manufactured under the NQA-1 nuclear quality assurance program with comprehensive approvals

Safety-relevant, heavy-duty fastening for dynamic loading in cracked or uncracked concrete and corrosive environments, including applications in nuclear power plants

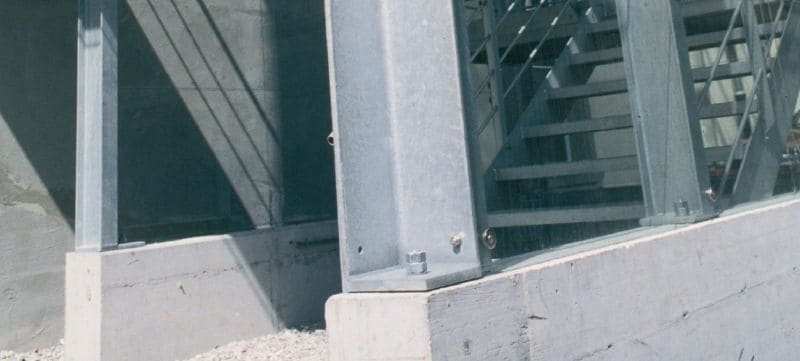

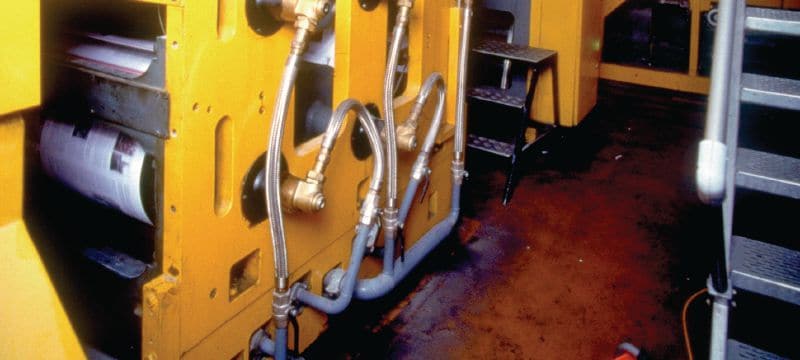

Anchoring supports for heavy pipes, safety barriers, industrial machines, crane rails, dorm structures, crash barriers, roof fastening points, elevator tracks, bridge retrofitting etc.

For approval or certificate information, please see individual items.
