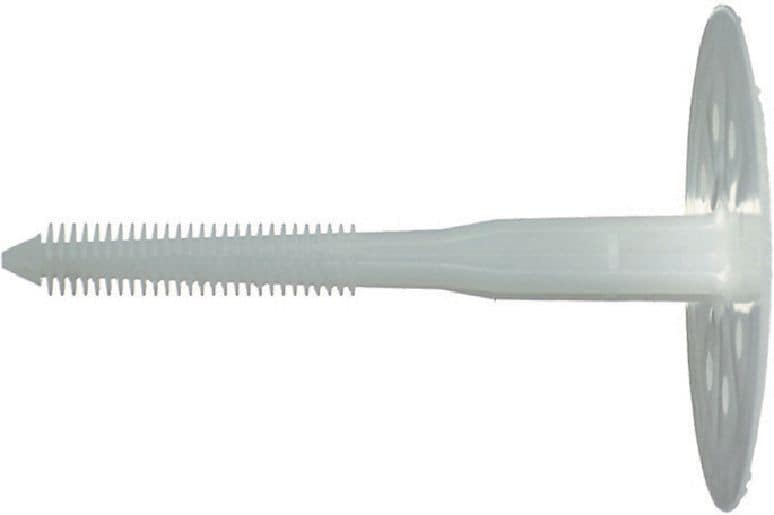

Insulation anchor

  • Base materials: Masonry (solid), Masonry (hollow), Concrete (tough)
  • Working principle: Impact anchor
  • Insulation material: Mineral wool, Soft board (e.g. EPS), Hard board (e.g. XPS, PUR, PIR)

Customers also searched for insulation fastenerinsulation anchorroockwool anchorfaçade insulation or anchoring.

Choose options

Insulation material thickness fastened - max.
  • 60 mm
  • 80 mm
  • 100 mm
  • 120 mm
Drill bit diameter
  • 8 mm
Anchor length
  • 90 mm
  • 110 mm
  • 130 mm
  • 150 mm
Pack size
  • 250 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From SR 341.25

Technical Data

Base materials
Masonry (solid), Masonry (hollow), Concrete (tough)
Working principle
Impact anchor
Insulation material
Mineral wool, Soft board (e.g. EPS), Hard board (e.g. XPS, PUR, PIR)
Approvals / test reports
N/A
Environmental conditions
Outdoor (more than 1km to coast)
Type of fastening
Through-fastening
Material composition
Polyamide
Material, corrosion
Plastic

Documents

Features & Applications

Features

  • Quick and easy impact installation
  • Insulating material thickness: up to 150 mm
  • Depth of embedment: 25 mm

Applications

  • Fastening rigid, self-supporting, insulating materials such as expanded polystyrene

For approval or certificate information, please see individual items.
