HDA-P Undercut anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
L060070.tif
HAD Design anchors
HDA
HDA
HDA-PF, HDA-TF
Deckenkran 05703.tif

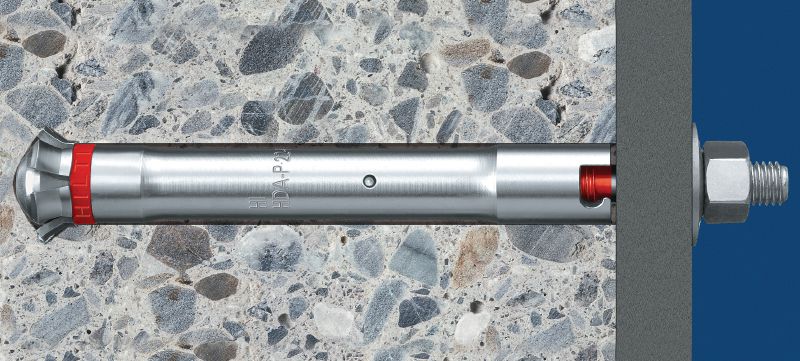

Ultimate-performance pre-set undercut anchor for dynamic loads (zinc-plated)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Externally threaded
  • Approvals / test reports: ETA, Fatigue, Seismic

Customers also searched for heavy duty anchor, undercut anchor, ultimate performance anchor, heavy anchor supports or anchoring.

Choose options

Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

No products available

Please Contact us to find a solution.

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Externally threaded
Approvals / test reports
ETA, Fatigue, Seismic
Fatigue loading
Yes
PROFIS software
Yes
Type of fastening
Pre-fastening

Documents

Technical information
Approval document
Brochure
pdf Technical data sheet for the HDA design anchor, English [ 1.3 MB ]
pdf Solutions for fastening: Improved design for anchors under shear loading, English [ 1.6 MB ]

Features & Applications

Features

  • Combines the flexibility and immediate loading capability of a post-installed mechanical anchor with the performance of a cast-in-place headed stud
  • Close spacing and small edge distances thanks to low expansion forces
  • Self-undercutting facilitates faster and more reliable installation without need for a separate undercutting tool or additional operations
  • The resulting keying effect provides a more secure hold even in cracked concrete under dynamic loading
  • Manufactured under an NQA-1 nuclear quality assurance program with comprehensive approvals

Applications

  • Safety-relevant, heavy-duty fastenings for all dynamic loading (shock, seismic and fatigue) in cracked or uncracked concrete, including applications in nuclear power plants
  • Fastenings to support heavy pipes, safety barriers, industrial machines, crane rails, dorm structures, crash barriers, roof fixings, elevator tracks, bridge retrofitting etc.

For approval or certificate information, please see individual items.
