HDA-T Undercut anchor

Undercut anchor HDA-T M10x100/20 #331545

Configurator
Technical Data
Documents
Features & Applications
Related Products
L060075.tif
HDA
Deckenkran 05703.tif
HDA
HDA
HDA

Ultimate-performance through-set undercut anchor for dynamic loads (zinc-plated)

  • Head configuration: Externally threaded
  • Approvals / test reports: ETA, Fatigue, Seismic
  • Max. fixture thickness at standard embedment depth: 20 mm

Customers also searched for heavy duty anchor, undercut anchor, ultimate performance anchor, heavy anchor supports or anchoring.

Choose options

Anchor size
  • M10
Standard embedment depth
  • 100 mm
Max. fixture thickness at standard embedment depth
  • 20 mm
Pack size
  • 12 pc
 Product options
Quantity
Packs
Total Pieces
12
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
SR 2,361.60
SR 196.80 / 1 Piece

Technical Data

Head configuration
Externally threaded
Approvals / test reports
ETA, Fatigue, Seismic
Max. fixture thickness at standard embedment depth
20 mm
Fatigue loading
Yes
PROFIS software
Yes

Documents

Technical information
Approval document
Brochure
Sustainability Documentation
Operating Instruction
pdf Technical data sheet for the HDA design anchor, English [ 1.3 MB ]
pdf Solutions for fastening: Improved design for anchors under shear loading, English [ 1.6 MB ]

Features & Applications

Features

  • Combines the advantages of a post-installed mechanical anchor, i.e. flexibility and immediate loading, with the performance of a cast-in-place headed stud
  • Close spacing and small edge distance thanks to low expansion forces
  • Self-undercutting facilitates fast and reliable installation without the need for a separate undercutting tool or additional operations
  • The resulting keying effect provides a secure hold even in cracked concrete under dynamic loading
  • Manufactured under an NQA-1 nuclear quality assurance program with comprehensive approvals

Applications

  • Safety-relevant, heavy-duty fastenings for all dynamic loading (shock, seismic and fatigue) in cracked or uncracked concrete, including applications in nuclear power plants

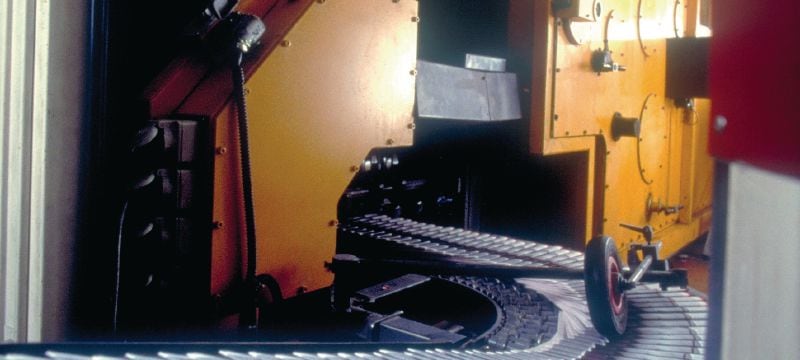

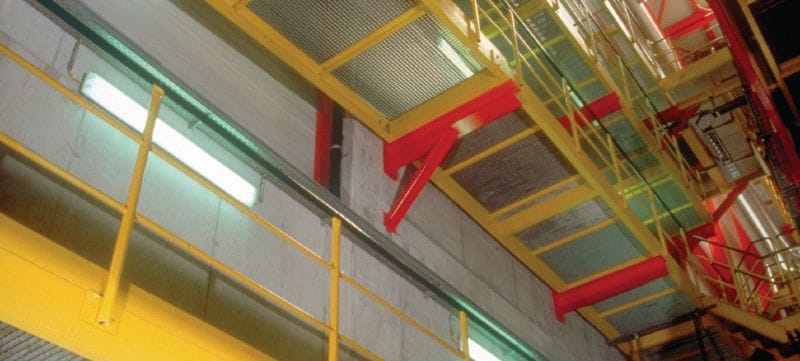

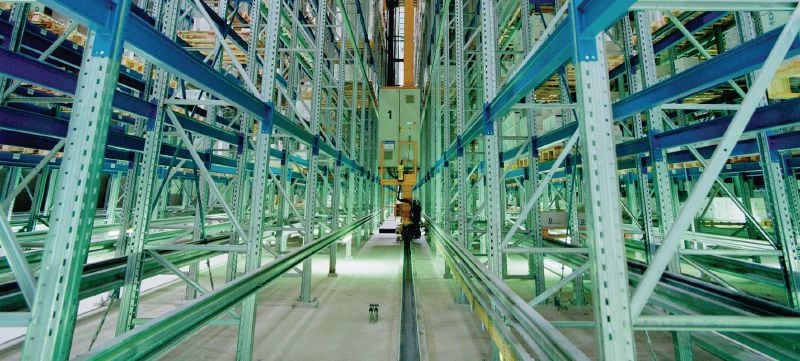

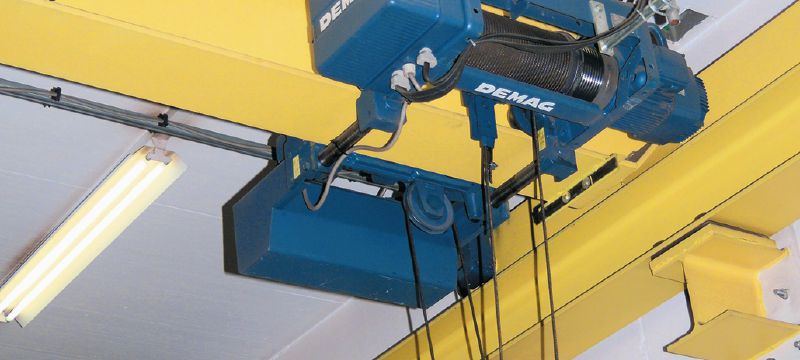

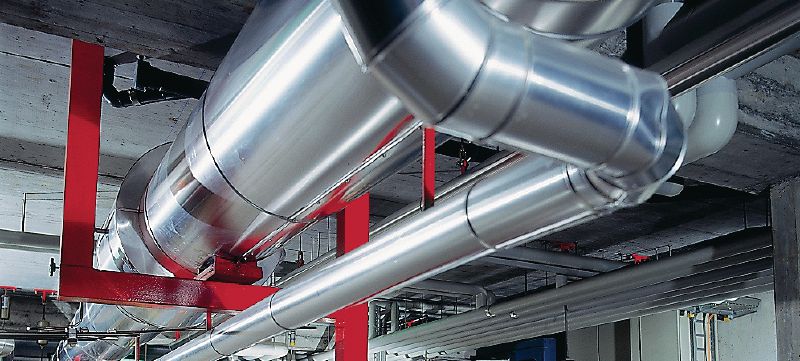

  • Fastenings to support heavy pipes, safety barriers, industrial machines, crane rails, dorm structures, crash barriers, roof fixings, elevator tracks, bridge retrofitting etc.
