FX 3 Support plates

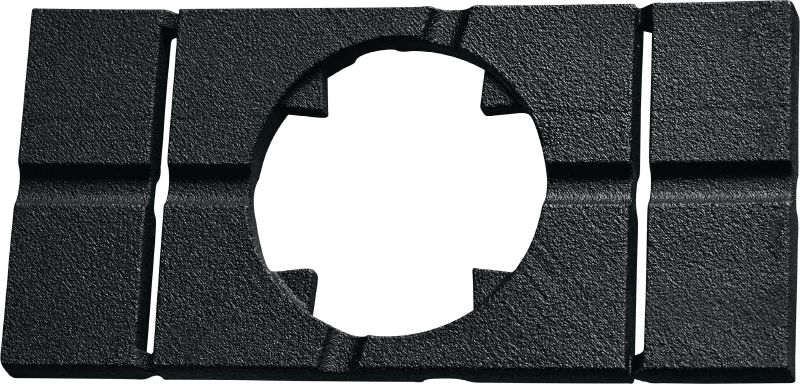

Support plate FX 3-SP S #2360102

Configurator
Technical Data
Documents
Features & Applications
Related Products
L130683 (2527147)
L131033_cropped (2806679)

Support plates to create a stable base for narrow material when fastening with F-BT-MR SN fusion threaded studs

  • Application: Multi-purpose fastening (electrical, mechanical elements and support system fastenings)
  • For use with (tools): FX 3
  • Material composition: Ultramid® A3WG10

Choose options

Length
  • 100 mm
Pack size
  • 200 pc
 Product options
Quantity
Packs
Total Pieces
200
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
SR 1,178.00
SR 5.89 / 1 Piece

Technical Data

Application
Multi-purpose fastening (electrical, mechanical elements and support system fastenings)
For use with (tools)
FX 3
Material composition
Ultramid® A3WG10
Environmental conditions
Outdoor, areas with heavy industrial pollution
Base materials
Carbon steel

Documents

Technical information
Operating Instruction
pdf Cordless Stud Fusion (CSF) Technical Manual 09/2025, English [ 6.2 MB ]
pdf Cordless Stud Fusion (CSF) Technical Manual 05/2023, Revision 2 02/2025, English [ 5.8 MB ]
pdf Cordless Stud Fusion (CSF): F-BT Visual Examination Catalogue - OTR/5724148/03, 2025-05-02, including grinding, English [ 1.3 MB ]
pdf Cordless Stud Fusion (CSF): F-BT Visual Examination Catalogue - OTR 5724148/02, 2022-11-14 , English, Arabic, French, German, Indonesian, Italian, Korean, Spanish, Thai, Turkish, Vietnamese [ 3.6 MB ]

Features & Applications

Features

  • Provides a stable base for fastening narrow material when using F-BT studs with sealing washer
  • Helps you maximise the performance of multiple studs and fastened materials (suitable for Stud Fusion only)

Applications

  • Fastening to steel in polluted/corrosive environments (up to C5) involving higher tensile loads or thinner base materials

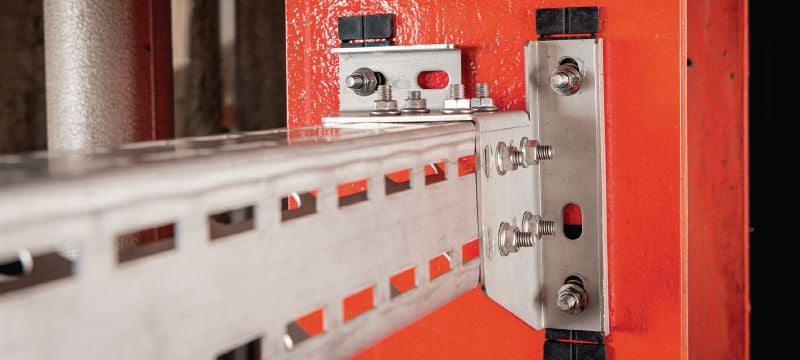

  • Steel fastening in oil and gas offshore installations – cable tray/ladder supports, non-critical pipe supports, multi-disciplinary supports and miscellaneous equipment fastenings
  • Steel fastening in oil and gas onshore installations – cable tray/ladder supports, non-critical pipe supports, multi-disciplinary supports and miscellaneous equipment fastenings
  • Shipbuilding – false ceiling fixing, inspection grids, water spray separators, outfitting, supports for electric/piping/ventilation services
