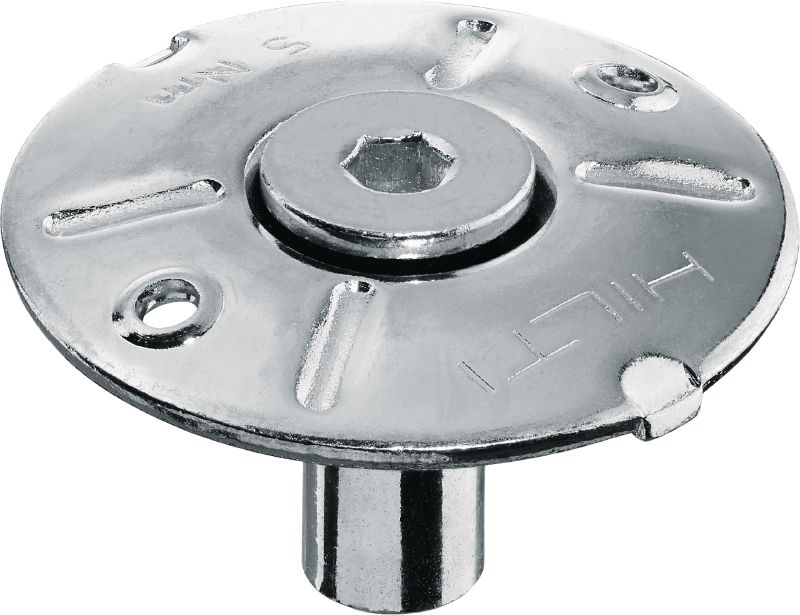

X-FCM-F NG Narrow grating fastener disc (duplex coated)

L130779 (2556330)
L141128_cropped (223152)
L141129_cropped (223144)
L141130_cropped (223146)

Duplex coated narrow grating fastener disc for fixing narrow-mesh floor grates with threaded studs in mildly corrosive environments

  • Application: Grating
  • For use with (tools): DX 460, DX 5, DX 6
  • Corrosion protection: Duplex coating equivalent to 45 µm hot-dip galvanized
ultimate

Choose options

Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Application
Grating
For use with (tools)
DX 460, DX 5, DX 6
Corrosion protection
Duplex coating equivalent to 45 µm hot-dip galvanized
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor temporary applications, Outdoor with low pollution, Outdoor with moderate concentration of pollution
Minimum thickness of base material (steel)
6 mm
Product class
Ultimate

Documents

pdf X-FCM-F NG Data Sheet, English, German, Spanish, French, Italian, Polish [ 5.8 MB ]
pdf Direct Fastening Technology Manual, English [ 6 MB ]

Features & Applications

Features

  • Labour-saving grating installation – fewer steps than traditional grating clamps and welding
  • Approvals and certificates – technical data, test reports and approvals available
  • No surface rework needed – when fastening grating to steel with S-BT and X-BT threaded studs
  • Durable hold – locking tabs on the disc help to prevent loosening or spinning
  • Reduce trip hazards – non-slip surface and minimized protrusion on walkway gratings when correctly installed

Applications

  • Fastening narrow grating to steel in mildly corrosive C3 environments, such as power plants, industrial facilities and mining
  • For gratings exposed to standard loads such as walkways

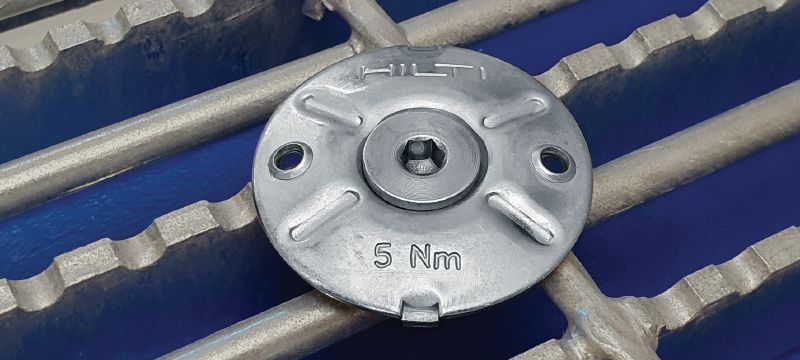

  • Fastening narrow-mesh steel grating

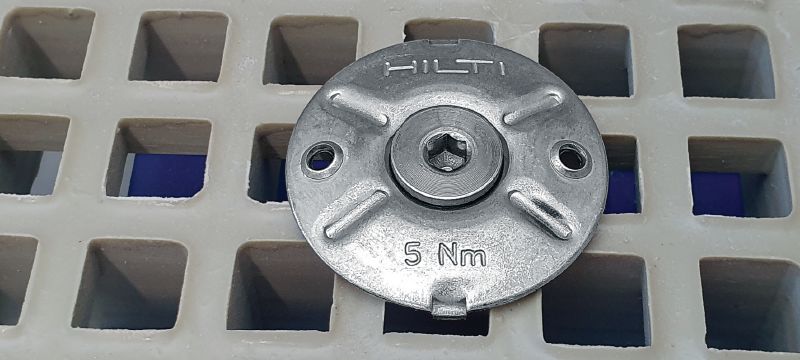

  • Fastening fiber-reinforced plastic (FRP) mini-mesh grating
  • Grating fastener disc for use with M8 threaded studs

For approval or certificate information, please see individual items.
