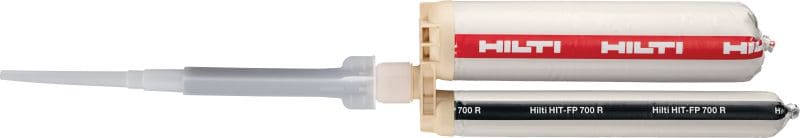

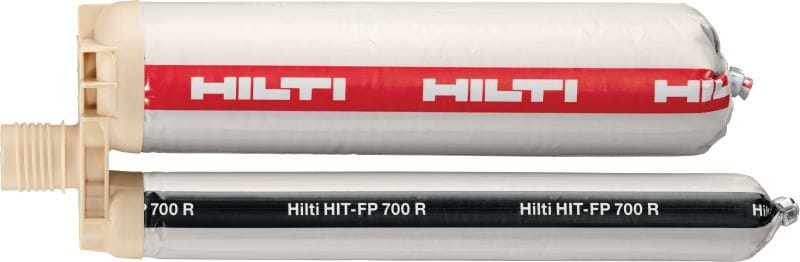

HIT-FP 700 R Injectable cementitious adhesive anchor

Injectable cementitious adhesive anchor for fire-resistant structural rebar connections

  • Base materials: Concrete (cracked), Concrete (non-cracked)
  • Base material condition: Dry, Wet
  • Approvals / test reports: DIBt, ETA, Fire, Seismic

Technical Data

Base materials
Concrete (cracked), Concrete (non-cracked)
Base material condition
Dry, Wet
Approvals / test reports
DIBt, ETA, Fire, Seismic
Seismic loading
Yes
PROFIS software
Yes
Anchoring elements
Rebar
Environmental conditions
Dry indoor, Indoor with temporary condensation
Cleaning procedures
Automatic cleaning (SafeSet hollow drill bit), Compressed-air cleaning, Manual cleaning
Storage and transportation temperature range
5 - 25 °C
In-service temperature – range
-40 - 160 °C
Free of styrene
Yes

Documents

Features & Applications

Features

  • Fire-resisting cementitious adhesive anchor with bond strength performance compared with a cast-in rebar even at temperatures up to 500°C – HIT-FP 700 R provides you the possibility of an efficient and code-compliant solution for most fire-rated structural connections e.g. EC2, Part 1
  • Extensive range of assessment documents – ETA documentation for fire, static and 100-year working life available

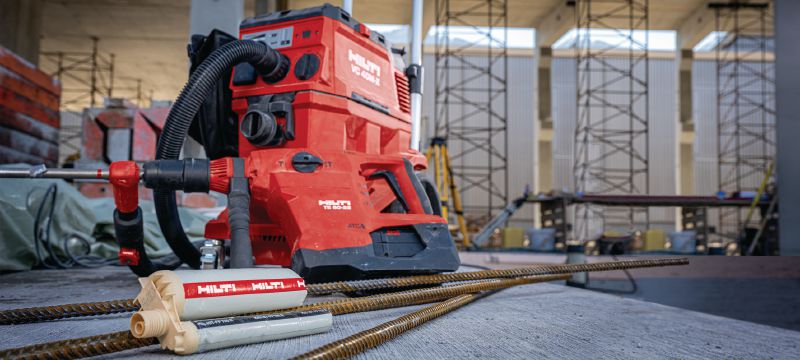

  • Compatible with the Hilti SafeSet technique – save time on-site and minimise room for installation errors by using hollow drill bits with a compatible Hilti vacuum cleaner

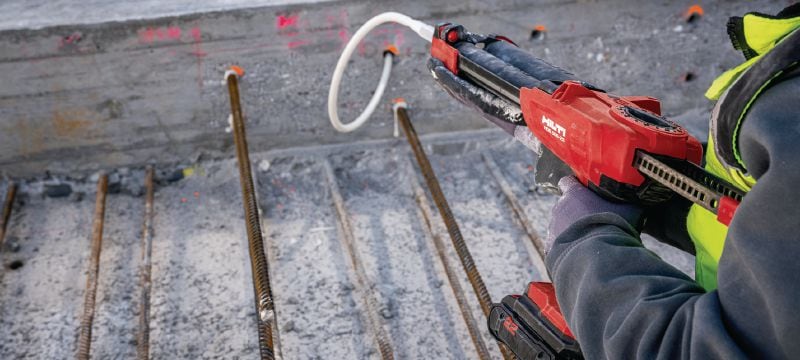

  • Easier to handle – this cementitious adhesive anchor is compatible with your existing Hilti adhesive dispensers, helping to minimise wastage and time, especially when used with Hilti HDE battery-powered dispensers
  • Specifier support available – use Hilti PROFIS Engineering software to simplify the design of post-installed fire-rated concrete-to-concrete connections, or contact your local Hilti Engineering Team for advice on complex projects

Applications

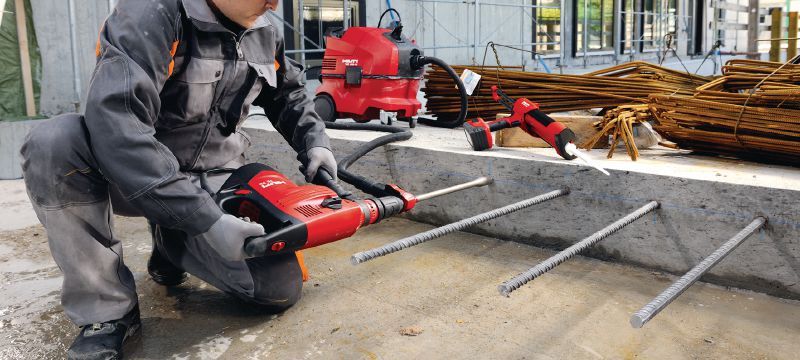

  • Fire-rated post-installed rebar connections, including splice connections between new and existing concrete, new columns, column and beam extensions and closing of openings
  • Post-installed concrete-to-concrete civil applications, including bridge extensions and diaphragm trench walls
  • Compared to vinylester and epoxy mortars, FP 700 R is characterised by a longer curing process, similar to normal weight concrete. This product is engineered in such a way as to allow a seamless integration with current state-of-the-art rebar installation processes

For approval or certificate information, please see individual items.
