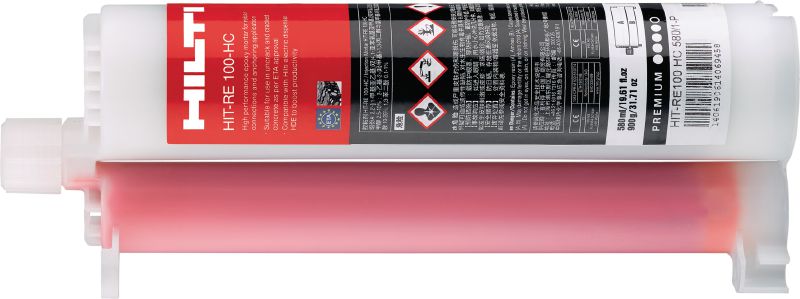

HIT-RE 100-HC Epoxy anchor
High-performance injectable epoxy mortar with ETA approvals for anchoring and rebar connections in concrete
- Base materials: Concrete (cracked), Concrete (non-cracked)
- Base material condition: Dry, Wet
- Approvals / test reports: ETA, Fire
Technical Data
Base materials
Concrete (cracked), Concrete (non-cracked)
Base material condition
Dry, Wet
Approvals / test reports
ETA, Fire
PROFIS software
Yes
Anchoring elements
HAS-U threaded rods
Cleaning procedures

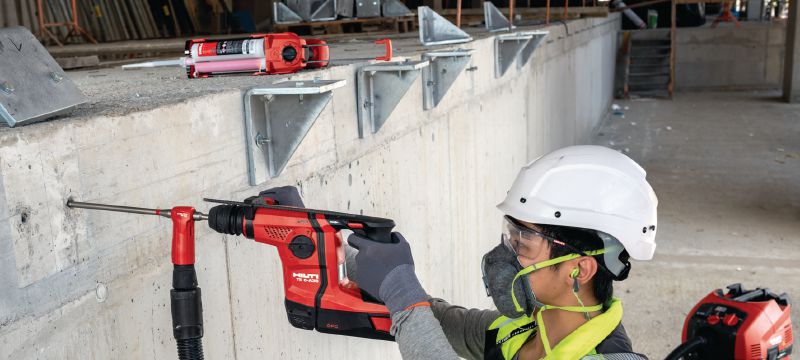

Automatic cleaning (SafeSet hollow drill bit), Compressed-air cleaning, Manual cleaning
Storage and transportation temperature range
5 - 25 °C
In-service temperature – range
-40 - 70 °C
Free of styrene
Yes
Documents
Features & Applications
Features
- Formulated to minimise waste – more economical due to the large cartridge size and fewer discarded pulls required to prime dispenser
- Engineered for higher performance in cracked and uncracked concrete

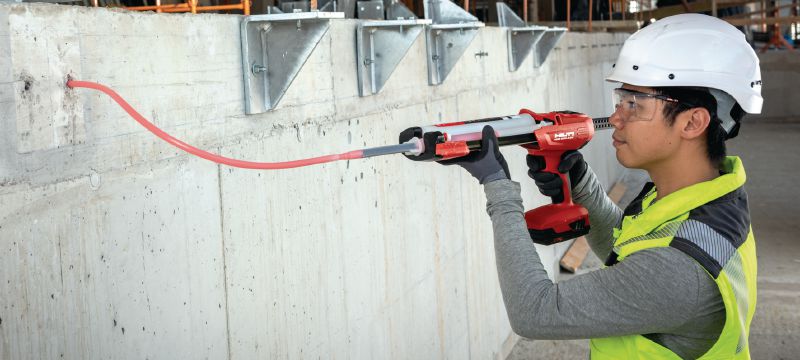

- Compatible with Hilti cordless dispenser to help boost jobsite productivity
- Extended working time allows great flexibility in installation
- Extensive range of accessories available (e.g. piston plugs, brushes and overhead wedges) to support different installation
Applications

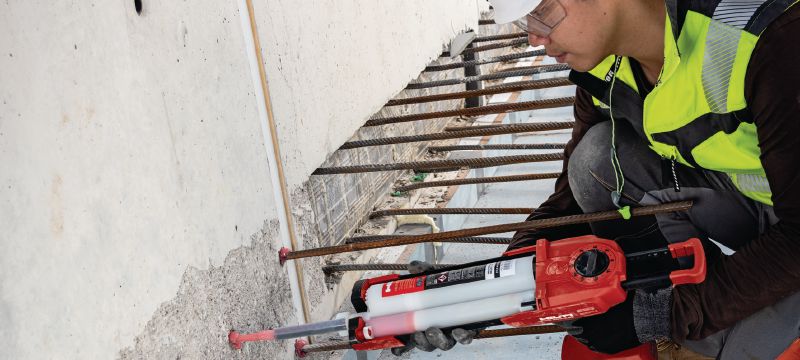

- Rebar doweling / connection of secondary post-installed rebars
- Substitution of misplaced / missing rebar
- Building retrofitting and rehabilitation
- Adding additional floor slabs
- Anchoring structural steel connections (e.g. steel columns, beams)
For approval or certificate information, please see individual items.
