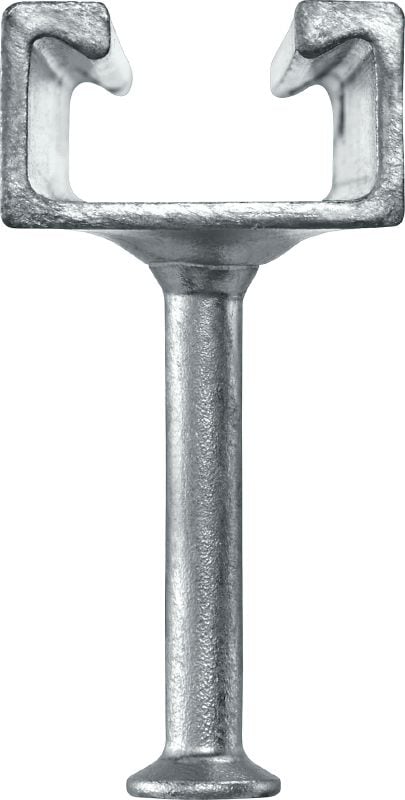

HAC-C Hot-rolled anchor channel

Hot-rolled cast-in anchor channels in standard sizes and lengths suitable for a wide range of applications

  • Material, corrosion: Carbon Steel, Hot-Dip Galvanised, Stainless steel, A4

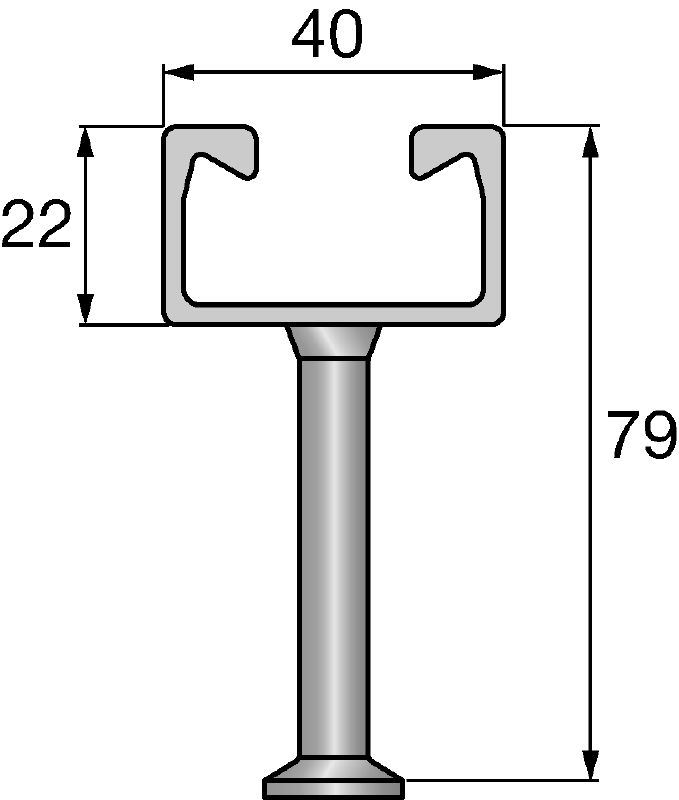

  • Channel profile: HAC-C 40/22, HAC-C 50/30, HAC-C 52/34
  • PROFIS software: Yes

Choose options

Quantity
Total Pieces
NaN
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

No products available

Please Contact us to find a solution.

Technical Data

Material, corrosion
Carbon Steel, Hot-Dip Galvanised, Stainless steel, A4
Channel profile
HAC-C 40/22, HAC-C 50/30, HAC-C 52/34
PROFIS software
Yes

Documents

Features & Applications

Features

  • Hot-rolled channels with thick, sturdy profiles – engineered for high load resistance

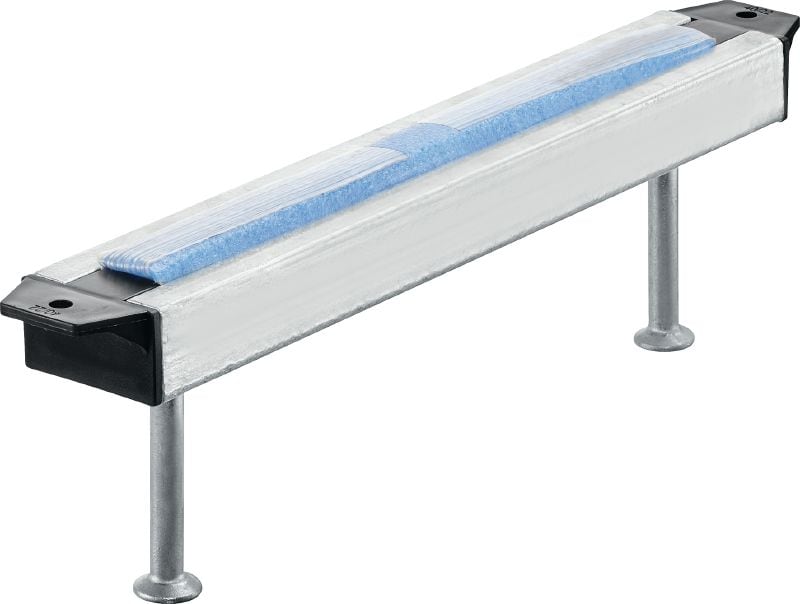

  • LDPE foam filler with grab tab – helps to keep concrete out of the channel and can be removed rapidly in one piece
  • Available in three sizes to fit virtually any installation – HAC-C 40/22, HAC-C 50/30, HAC-C 52/34
  • ETA and fire approval documents available
  • Available in stainless steel and hot-dip galvanised versions – helping to provide corrosion protection as needed for specific environmental conditions

Applications

  • Fastening production equipment (e.g. machines, conveyor belts)
  • Metro, railway or utility tunnels (e.g. fixing cantilever systems, supply pipes, signs, ventilation or support beams)
  • Curtain wall façades (e.g. fixing curtain wall elements with brackets)
  • Elevators (e.g. fixing guide-rails, sliding doors or divider beams)
  • Power plants

For approval or certificate information, please see individual items.
