HAC cast-in anchor channel

Configurator
Technical Data
Documents
Features & Applications
Related Products
Cast-In
HAC (76103)
35965.tif
Cast-In

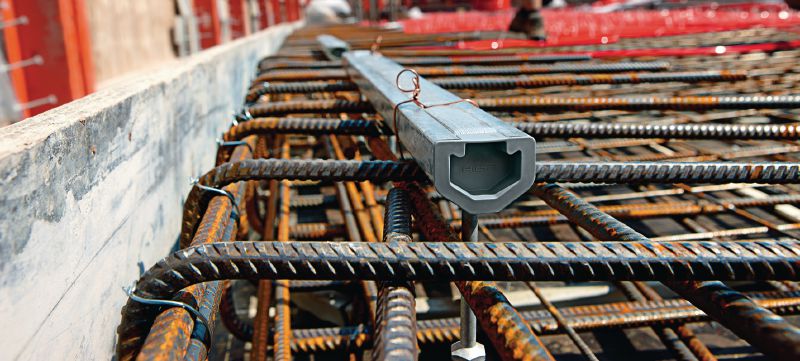

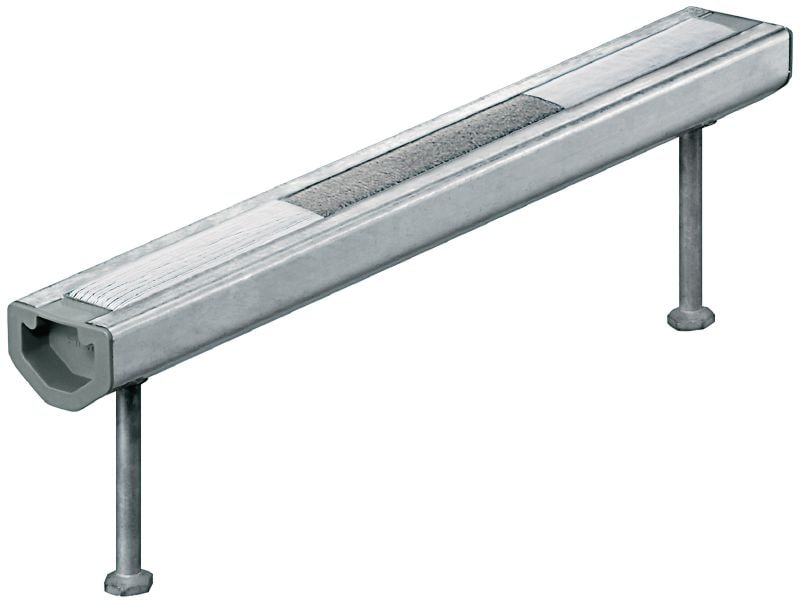

Cast-in anchor channels in standard sizes and lengths with the regulatory approvals needed for virtually any challenging project

  • Material, corrosion: Carbon Steel, Hot-Dip Galvanised
  • Channel profile: HAC-50, HAC-60
  • PROFIS software: Yes

Choose options

Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Material, corrosion
Carbon Steel, Hot-Dip Galvanised

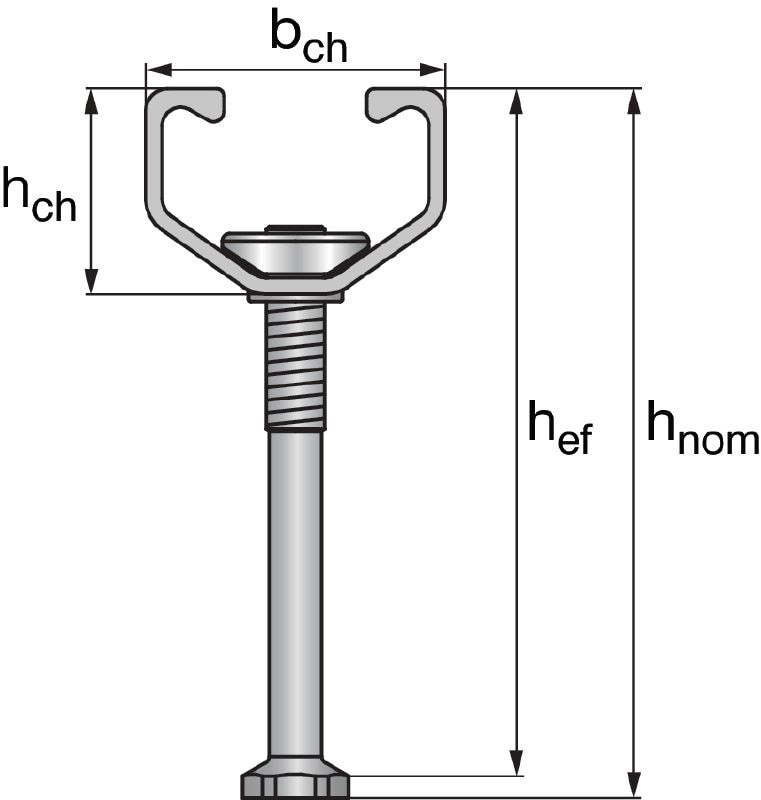

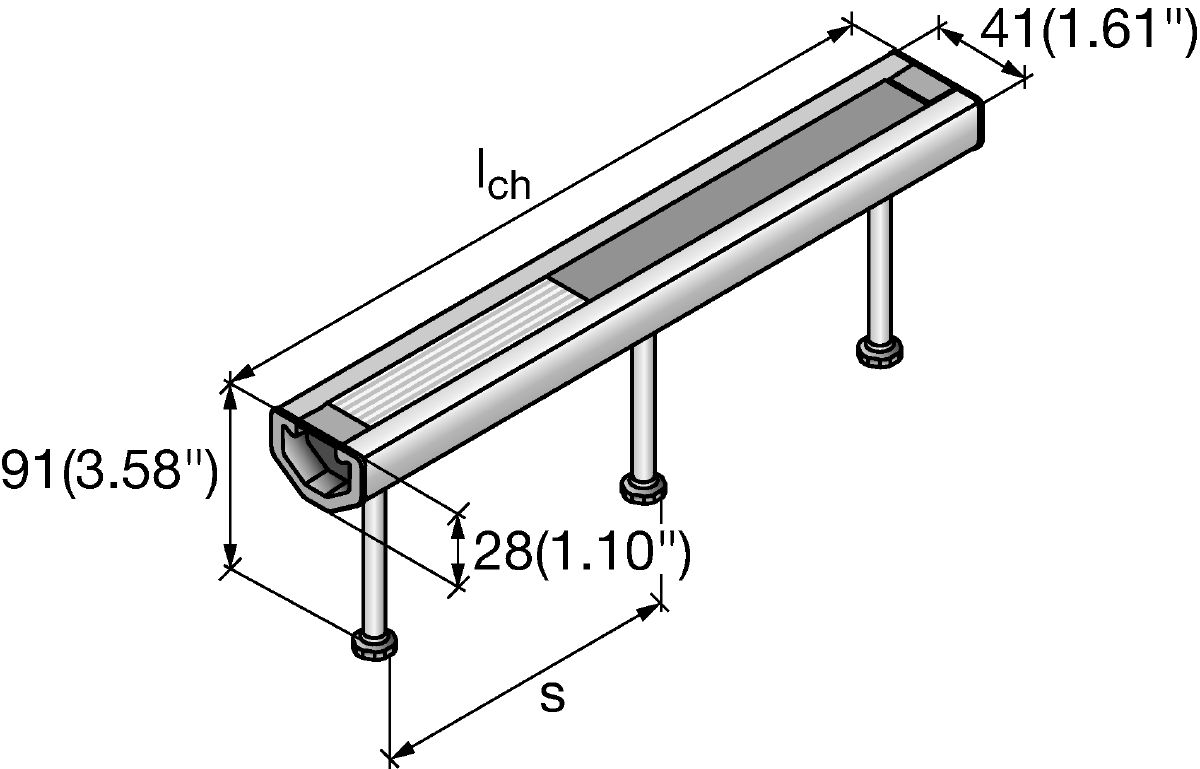

Channel profile
HAC-50, HAC-60
PROFIS software
Yes

Documents

Approval document
Technical information
pdf ICC-ESR 3520 for HAC-V Anchor Channel Systems in Cracked and Uncracked Concrete incl. LABC and FBC Supplement (Aug. 2025), English [ 3.7 MB ]
pdf ETA 11/0006 Hilti HAC(-V) anchor channel, English, German, Polish [ 14.5 MB ]
pdf ETA 11/0006 for HAC cast-in anchor (ETAG -, Option -), English [ 6.9 MB ]
pdf ETA_11_0006_HAC_Anchor_Channels, German [ 6.9 MB ]

Features & Applications

Features

  • High-performance solution – designed for challenging loads and design parameters
  • Approved for static, fatigue, seismic and fire loading
  • Customisable – options available for virtually any specification
  • Low-energy manufacturing – cast-in anchor channels can contribute to environmental certification of construction projects
  • High-precision manufacturing

Applications

  • Curtain wall façades (e.g. fixing curtain wall elements with brackets)
  • Elevators (e.g. fixing guiderails, sliding doors or divider beams)
  • Projects with high environmental standards
  • Building appliances (e.g. heating, ventilation)
  • Power plants

For approval or certificate information, please see individual items.
