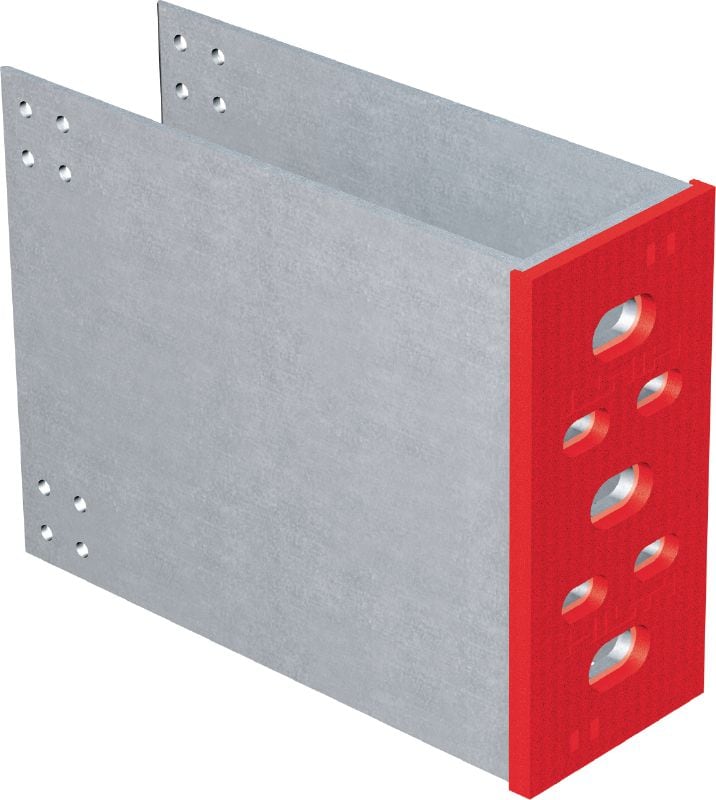

Large S2S bracket with pre-assembled isolator

  • Material composition: EN AW-6063 T66, Polypropylene (PP)
  • Insulation material: Polypropylene
  • Width: 74 mm

Technical Data

MFT-S2S UI L (87664)
Material composition
EN AW-6063 T66, Polypropylene (PP)
Insulation material
Polypropylene
Width
74 mm
Height
155 mm

Documents

Features & Applications

Features

  • Bracket lengths range from 80-300 mm
  • Pre-assembled isolator
  • Polymer isolator prevents corrosion between aluminium and concrete
  • Anchor and screw fastening option all in one bracket
  • 11 mm hole for use of anchors on concrete and masonry

Applications

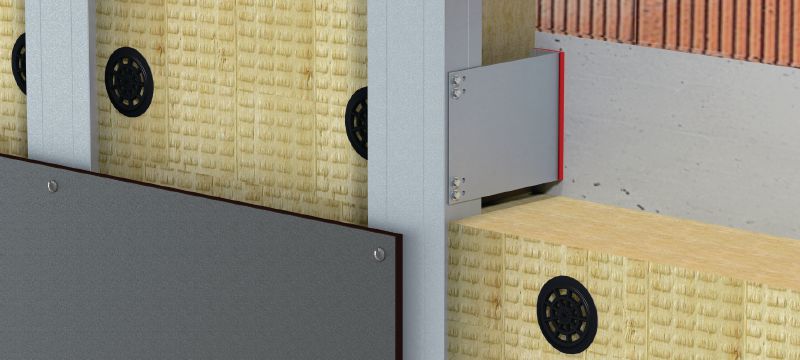

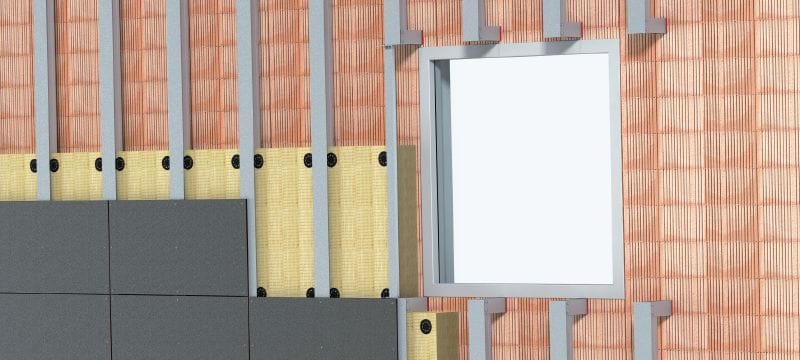

  • U-shaped bracket as a central part of the floor-spanning S2S system, installing ventilated facades independent of the wall condition between the slabs
  • Allows precise installation and alignment of S2S profiles
  • Suitable for all facade cladding types
  • Increased spacing between anchors in combination with MFT-S2S UI AP L is possible

For approval or certificate information, please see individual items.
