MFT-FOX V M bracket

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG003195_v2 (221935)
CG003324_v3_cropped (221906)
23_MFT_FOX_V_194_M_6_5_11 (221826)

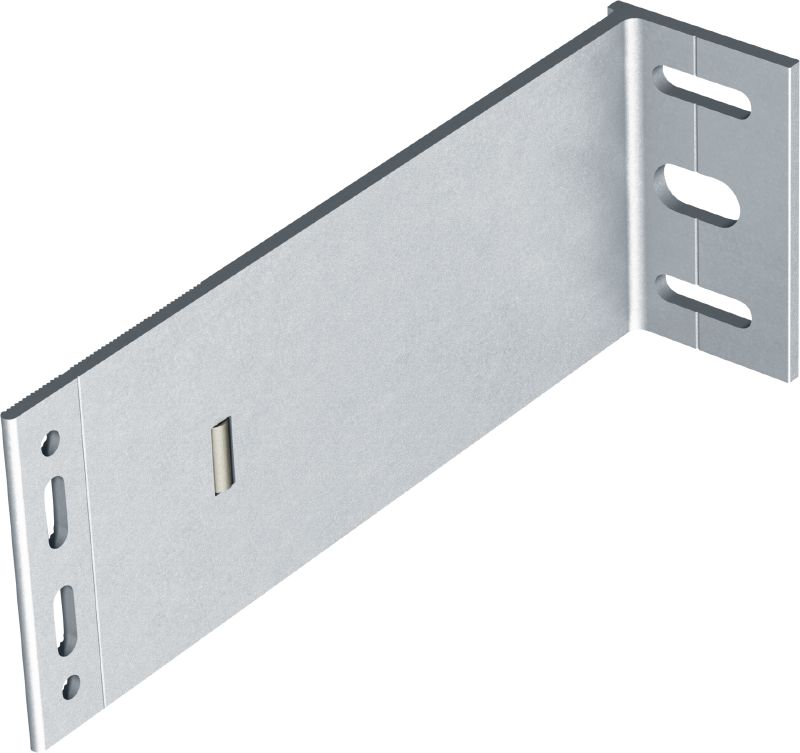

Versatile wall bracket for installing rainscreen façade substructures

  • Material composition: EN AW-6063 T66
  • Width: 46 mm
  • Height: 75 mm

Choose options

Length
  • 34 mm
  • 54 mm
  • 74 mm
  • 94 mm
  • 114 mm
  • 134 mm
  • 154 mm
  • 174 mm
  • 194 mm
  • 214 mm
  • 234 mm
  • 254 mm
  • 274 mm
  • 294 mm
Pack size
  • 50 pc
  • 100 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From SR 1,001.00

Technical Data

Details
Technical illustrations
Material composition
EN AW-6063 T66
Width
46 mm
Height
75 mm

Documents

Approval document
Sustainability Documentation
Operating Instruction
pdf ETA-22-0816 EN, English [ 2.8 MB ]

Features & Applications

Features

  • Labour saving – optimised bracket design and innovative fastening solutions help to lower your total cost of installation
  • Easier installation – optimised helping hand and clearer markings to simplify bracket fastening and rail alignment
  • Multiple fastening options – can be installed using suitable anchors, screws or direct fastening (DX)
  • Pre-assembled bracket – arrives on-site ready to fasten to the wall or slab
  • Engineering support available – contact your local Hilti team for project-specific advice on optimising the ventilated façade substructure

Applications

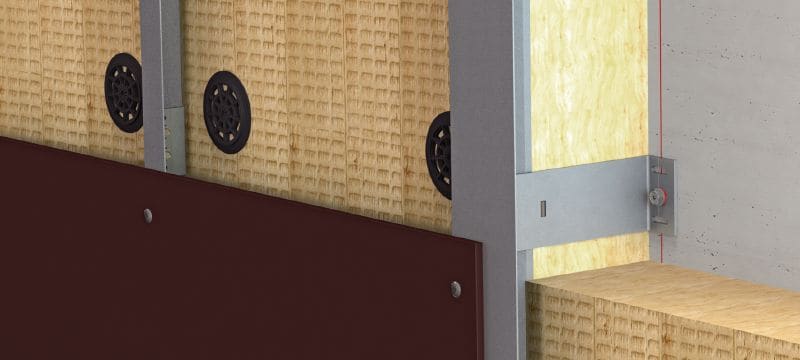

  • Fastening rainscreen façade substructure to concrete, masonry, metal studs and wood
  • Mounting façade substructures on the primary structure (helping hand bracket)
  • Installing vertical support rails
  • Suitable for all façade cladding

For approval or certificate information, please see individual items.
