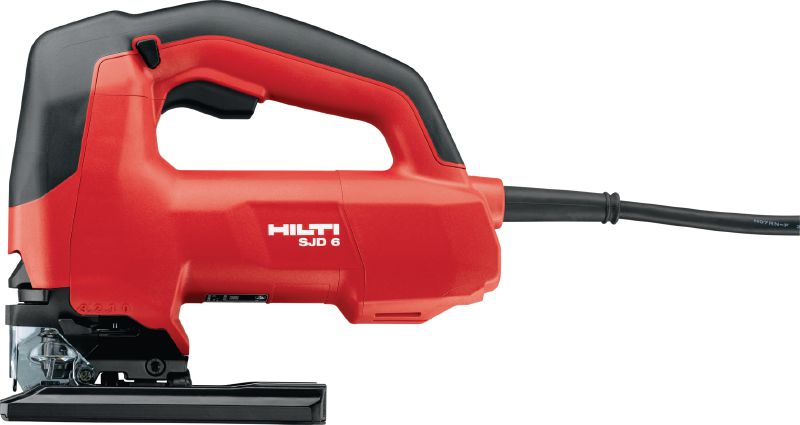

SJD 6 D-handle orbital jig saw

850W orbital jig saw with top handle, built to make tough, curved cuts faster and more comfortable

  • Rated input power: 850 W
  • Handle: Hoop grip
  • Weight according to EPTA-Procedure 01/2003 without battery: 2.4 kg

Technical Data

Rated input power
850 W
Handle
Hoop grip
Weight according to EPTA-Procedure 01/2003 without battery
2.4 kg
Base material
Aluminium, Chipboard, Construction timber, Drywall, Drywall studs, Gypsum board, Hardwood (beech, oak etc.), Non-ferrous metal, Plastic, Plywood, Wood, Wood composites, Tiles
Stroke length
28 mm
Stroke rate
3000 strokes/minute
Max. bevel angle
45 °
Max. cutting depth in mild steel
10 mm
Max. cutting depth for wood
150 mm
A-weighted emission sound pressure level
93 dB (A) 1
Triaxial vibration value for cutting board (ah,B)
9.7 m/s² 2
Uncertainty (K) for triaxial vibration value for cutting board (ah,B)
1.5 m/s² 3
Triaxial vibration value for cutting sheet metal (ah,M)
8.0 m/s² 4
Uncertainty (K) for triaxial vibration value for sawing in metal (ah)
1.5 m/s² 5
  1. according to EN 60745
  2. according to EN 60745-2-11
  3. according to EN 60745
  4. according to EN 60745-2-11
  5. according to EN 60745

Documents

Features & Applications

Features

  • Upgraded ergonomics with large baseplate – this lighter and more compact D-handle jig saw improves your manoeuvrability, stability and cut precision
  • 850W motor – delivers the cutting power you need to slice through tougher boards and metal
  • Keyless blade change – minimise your downtime while replacing jig saw blades

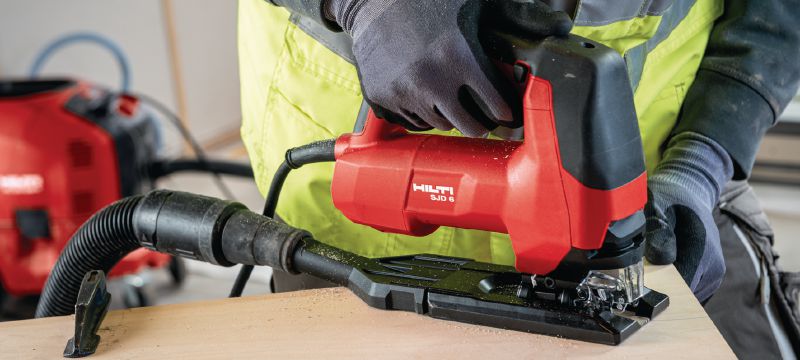

  • Virtually dust-free sawing – this jig saw has a dust blower and extraction adapter, keeping your cutting line clear
  • Speed dial and adjustable pendulum stroke – the operator has precise control over how fast the orbital jig saw cuts and how clean the final result needs to be

Applications

  • Trimming or cutting wood and plasterboard to size with minimal airborne sawdust when using DRS
  • Interior finishing – especially sawing plasterboard or wood-based internal cladding (horizontal or vertical cuts)
  • Cutting wood board up to 150 mm thick
  • Cutting metal sheet up to 10 mm thick
  • Cutting tiles and plastic pipes

For approval or certificate information, please see individual items.
