Nuron

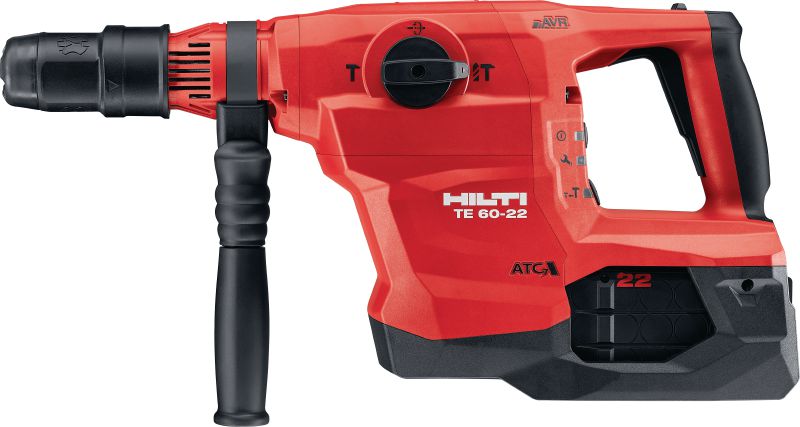

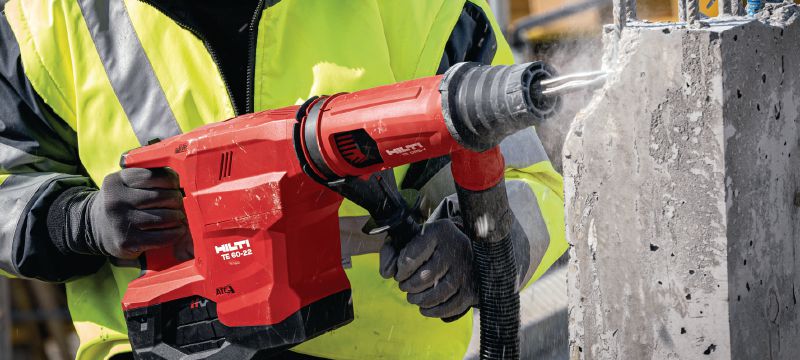

TE 60-22 cordless rotary hammer

Powerful and cordless SDS Max (TE-Y) rotary hammer with Active Vibration Reduction and Active Torque Control for heavy-duty concrete drilling and chiseling (Nuron)

  • Weight according to EPTA-Procedure 01/2003 without battery: 6.3 kg
  • Optimum hammer drilling range: 18 - 40 mm
  • Hammer drilling diameter range: 12 - 100 mm

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery
6.3 kg
Optimum hammer drilling range
18 - 40 mm
Hammer drilling diameter range
12 - 100 mm
Rated voltage
21.6 V
Single impact energy
8.1 J
Hammer drilling RPM
340 rpm
Full hammering frequency
3300 impacts/minute
Functionality
Active Torque Control (ATC), Active Vibration Reduction (AVR), Hammer drilling, Chiselling, Power reduction
Triaxial vibration value for hammer drilling into concrete (ah,HD)
10.7 m/s² 1
Triaxial vibration for chiselling in concrete
9.1 m/s² 2
Dust removal system available
TE DRS-Y, TE DRS-D
A-weighted emission sound pressure level
98 dB (A) 3
A-weighted emission sound power level
106 dB (A) 4
  1. according to EN 62841-2-6
  2. according to EN 60745-2-6
  3. according to EN 60745
  4. according to EN 60745

Documents

Features & Applications

Features

  • Outsized performance – weighing in at just 8.1 kg (inc. B 22-170 battery), TE 60-22 has the drilling and chipping power you'd expect from a much heavier cordless rotary hammer
  • Maximized working time per charge – brushless motor and more efficient Nuron batteries help you get up to 3x more battery run time
  • Upgraded safety features – includes Active Torque Control (ATC) to better protect you from uncontrolled spinning if the bit jams, and Active Vibration Reduction (AVR) for increased shielding from vibration
  • Longer trigger time – minimal vibration so that you can work with fewer interruptions
  • On the Nuron battery platform – cordless rotary hammers without compromise thanks to longer-lasting batteries, power-saving drill bits and a range of services to keep you productive, today and tomorrow

Applications

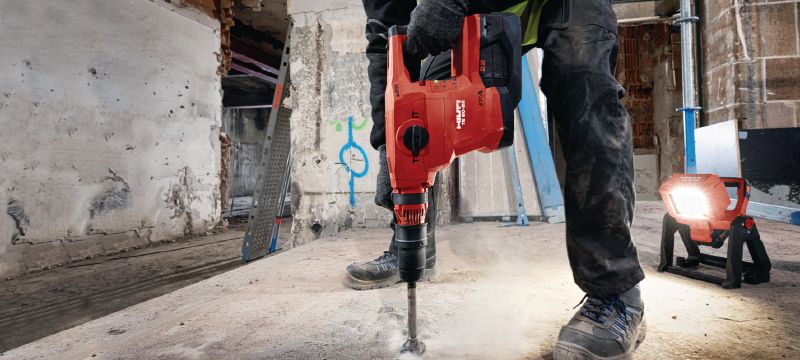

  • Extremely versatile rotary hammer drill for heavy-duty concrete construction work as well as building services installation

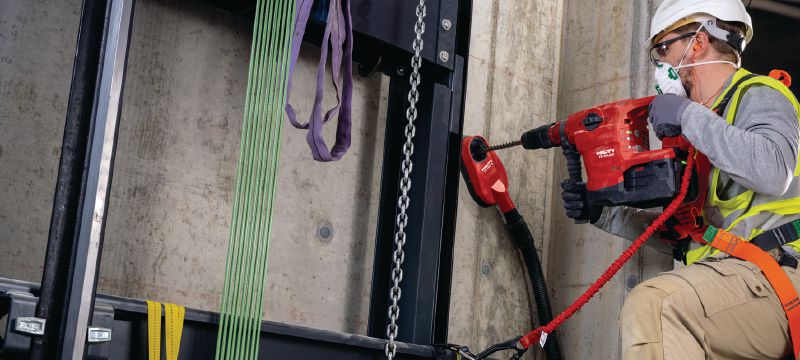

  • Drilling holes for post-installed reinforcing bar connections in concrete (recommended diameter range 20-40 mm)

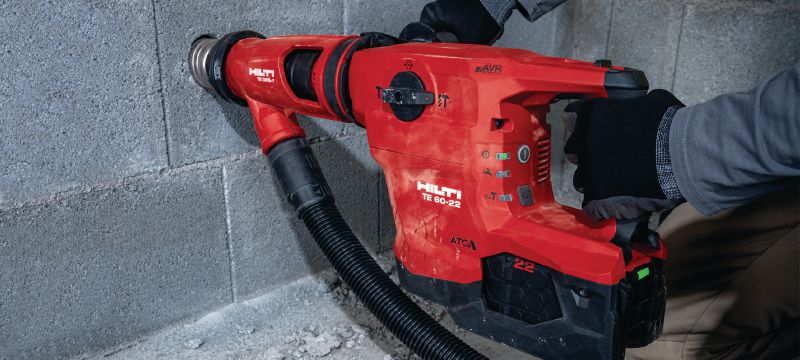

  • Drilling holes for pipe penetrations or plug sockets through concrete and masonry

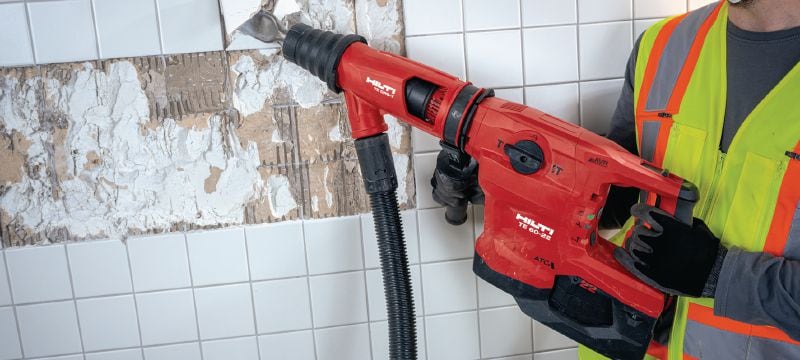

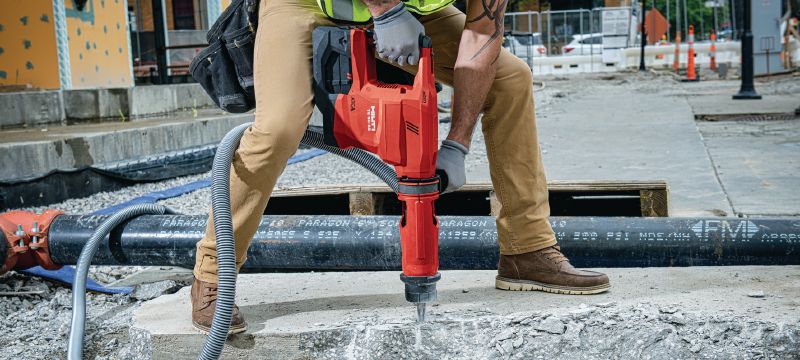

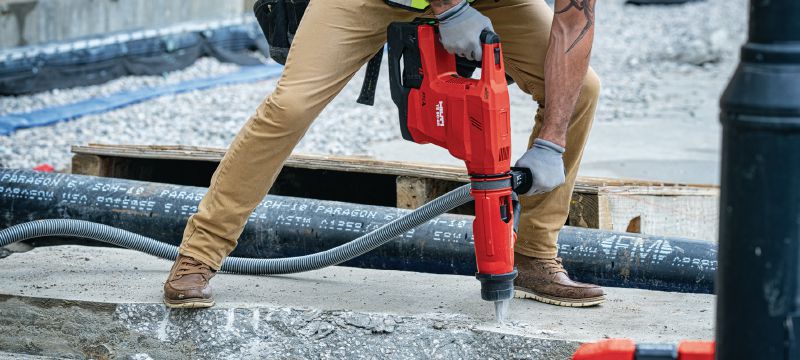

  • Chiseling openings and channels in concrete or masonry

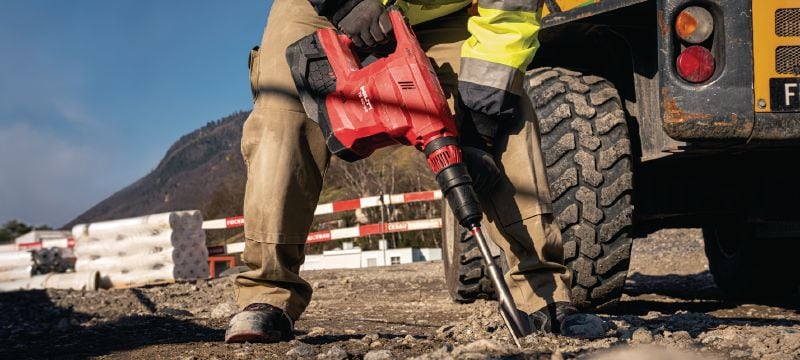

  • Digging holes in earth – SDS Max clay spade available separately

For approval or certificate information, please see individual items.
