Nuron

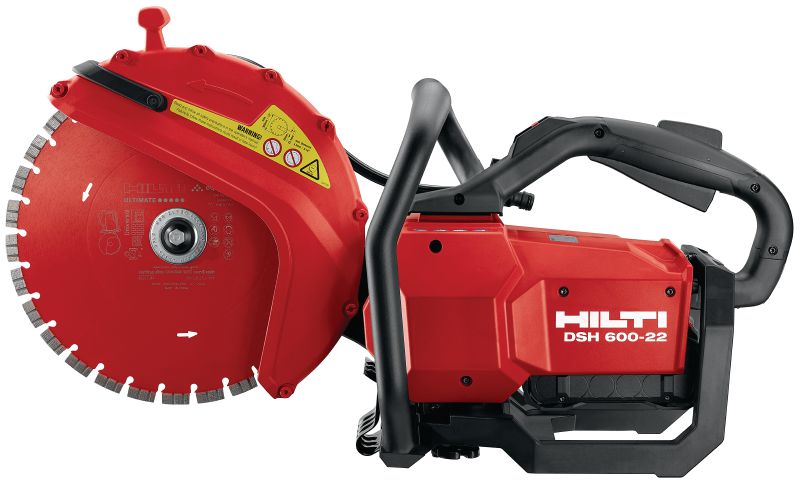

DSH 600-22 battery cut-off saw

heavy-duty, battery-powered cordless cut-off saw for concrete, metal and masonry (Nuron battery platform)

  • Base materials: All types of concrete and brick, All types of masonry (hollow brick, limestone, etc), Asphalt, Steel, Mineral
  • Dimensions (LxWxH): 660 x 290 x 350 mm
  • Protection class: IEC Battery operated

Technical Data

Base materials
All types of concrete and brick, All types of masonry (hollow brick, limestone, etc), Asphalt, Steel, Mineral
Dimensions (LxWxH)
660 x 290 x 350 mm
Protection class
IEC Battery operated
Work environment
Interior and exterior
Arbor Size
Option 1 : 25.4 mm; Option 2: 20 mm
A-weighted emission sound power level
108 dB (A) 1
  1. according to EN 60745

Documents

Features & Applications

Features

  • Battery-powered cut-off saw for heavy-duty tasks – DSH 600-22 gets the same work done as a 60cc gas cut-off saw, but without the fumes, noise, extra maintenance and fuel mix issues
  • Longer trigger time – cuts up to 30% more than a full tank of gas with four B 22-255 Nuron batteries and 300mm SPX univ. A cordless-optimized blades
  • Lower running costs – no fuel to buy or mix; less maintenance and up to double the lifespan of a gas saw thanks to a brushless electric motor
  • Improved safety features – fume-free, quieter, lower-vibration cutting and a fast-acting blade brake (approx. 4 seconds)
  • Better maneuverability – weighing just 8.9 kg (or 12.2 kg including two B 22-170 batteries and a 300 mm blade), this cut off saw is engineered for comfortable handling during all-day cutting

Applications

  • Cutting concrete and masonry – such as making new openings or trimming blocks to size (max. cutting depth 120 mm with 300 mm blades)
  • Paving – cutting curbstones, pavers and asphalt

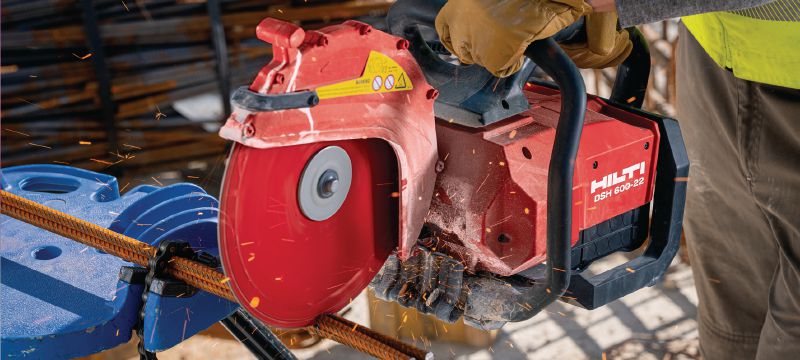

  • Metalwork – cutting metal deck, reinforcing bar, steel sheet, metal track and pipes
  • Cutting indoors – battery-powered cut-off saws are quieter and fume-free
  • Virtually dust-free cutting when used with a compatible water supply, or lower-dust cutting using a compatible vacuum cleaner and DSH-DRS accessories (please verify your local silica dust exposure limits)

For approval or certificate information, please see individual items.
