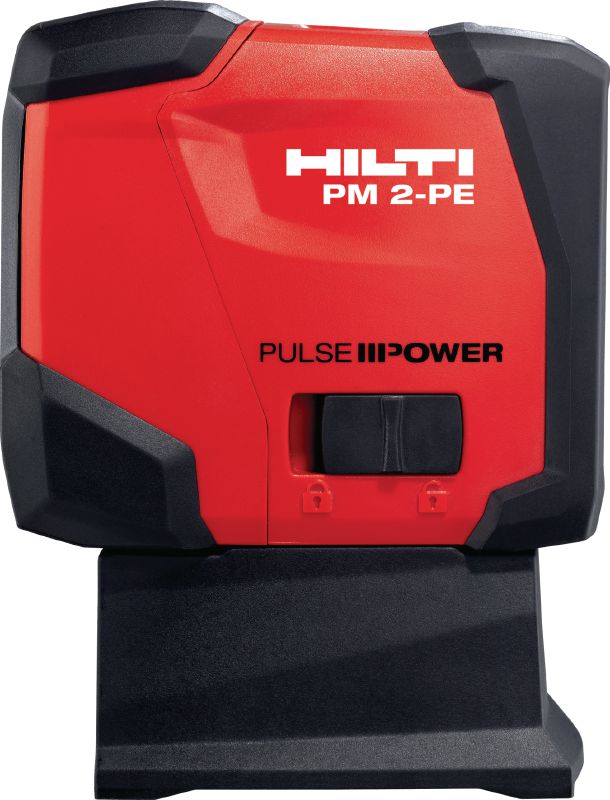

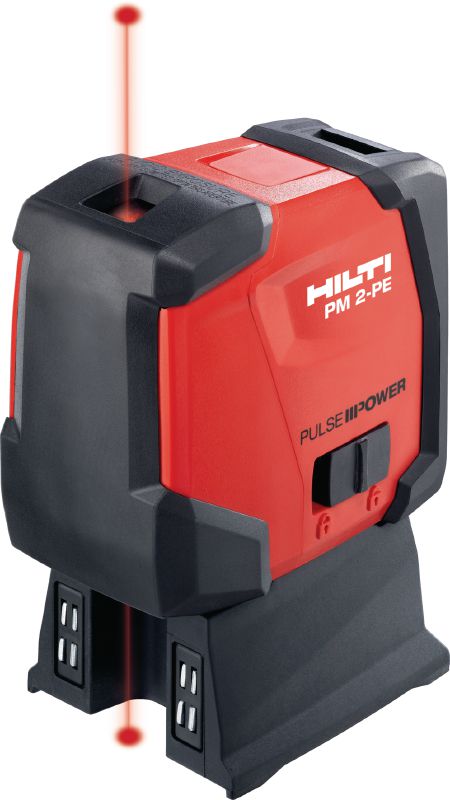

High-precision plumb laser with 2 points and red beam

  • Accuracy: ±1.5 mm at 10 m
  • Max. operating distance (diameter): 30 m (Points)
  • Maximum operating time: 50 h

Technical Data

Accuracy
±1.5 mm at 10 m
Max. operating distance (diameter)
30 m (Points) 1
Maximum operating time
50 h
Battery type
4 x 1.5 V (AA)
Self-levelling range at room temperature
±4 °
Self-levelling time
3 s
IP protection class
IP 54 (EN 60529)
Laser type
Point
  1. Operating distance can be significantly affected by site conditions. See operating instructions.

Documents

Features & Applications

Features

  • Plumb bob laser – self-levelling, 2-point laser with red beam
  • Longer-range precision – laser dot size optimised for alignment up to 30 m
  • Longer-range precision – laser dot size optimised for alignment up to 100 ft
  • Out-of-level and low-battery alerts – help prevent plumbing mistakes and unexpected downtime
  • Robust build – rubber-coated housing and pendulum lock help to withstand real jobsite conditions

Applications

  • Rail alignment for elevator applications
  • Transferring points from floor to ceiling
  • Vertical alignment of doors

For approval or certificate information, please see individual items.
