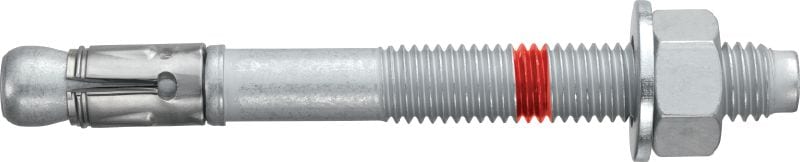

HST3 Wedge anchor
Ultimate-performance expansion anchor for cracked concrete and seismic (CS)
- Material, corrosion: Carbon steel, zinc-plated
- Head configuration: Externally threaded
- Approvals / test reports: ETA, Fire, FM (Factory Mutual), Seismic
Customers also searched for stud bolt, expansion anchor, cracked concrete anchor or anchoring.
Technical Data
Material, corrosion
Carbon steel, zinc-plated
Head configuration
Externally threaded
Approvals / test reports
ETA, Fire, FM (Factory Mutual), Seismic
Base materials
Concrete (cracked)
Installation tools
TE 30-22 cordless rotary hammer
PROFIS software
Yes
Documents
Features & Applications
Features
- Highest resistance to meet geometrically challenging requirements, e.g. reduced member thickness, smallest spacing and edge distances
- Increased undercut percentage in combination with optimized coating
- Greater flexibility thanks to two embedment depths included in the ETA
- Minimum edge and spacing distances reduced by up to 25% compared to HST
Applications

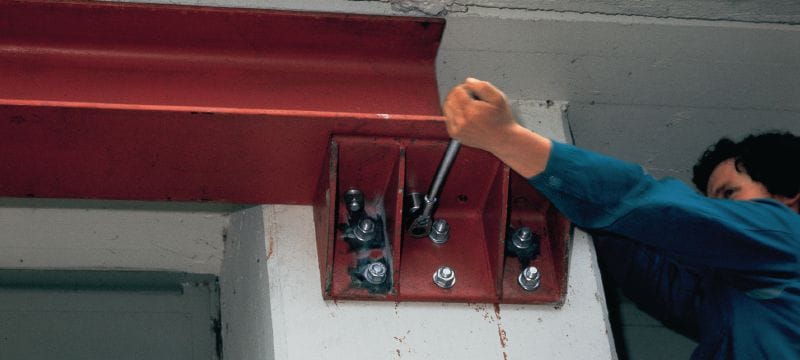

- All safety-relevant fastenings in cracked and uncracked concrete
- All safety-relevant fastenings in seismic loading conditions, category C1 for non-structural elements and category C2 for structural elements

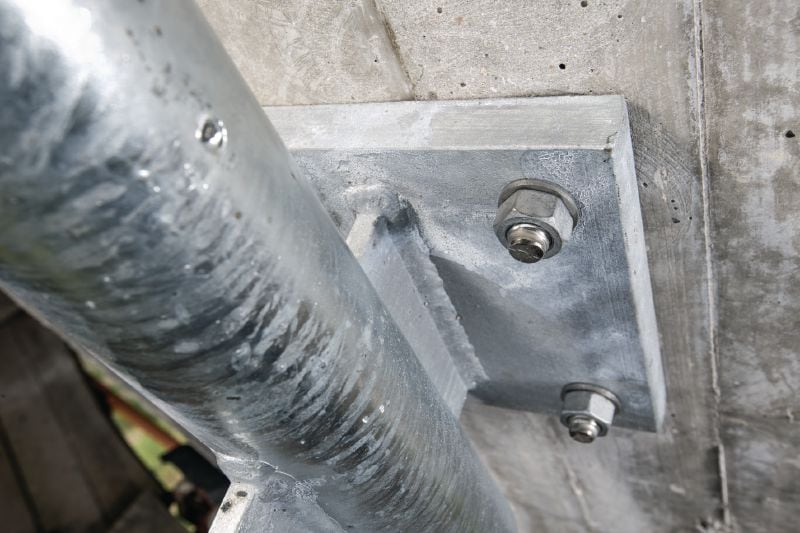

- Hand rails
- Racks
For approval or certificate information, please see individual items.
