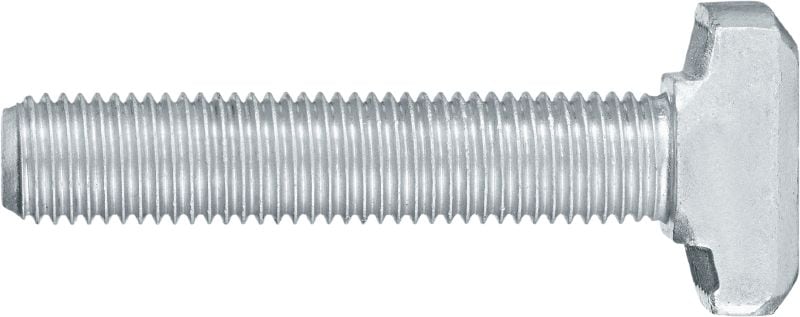

HBC-T Serrated T-bolts
Serrated T-bolts for tension, perpendicular and parallel shear loads (3D loads)
- Material, corrosion: Carbon Steel, Hot-Dip Galvanised, Carbon steel, zinc-plated
- Compatible anchor channel: HAC-30
- Channel profile: HAC-V-T 50, HAC-V-T 70, HAC-V-T EDGE, HAC-V-T Rebar XTS
Technical Data
Material, corrosion
Carbon Steel, Hot-Dip Galvanised, Carbon steel, zinc-plated
Compatible anchor channel
HAC-30
Channel profile
HAC-V-T 50, HAC-V-T 70, HAC-V-T EDGE, HAC-V-T Rebar XTS
PROFIS software
Yes
Documents
Features & Applications
Features

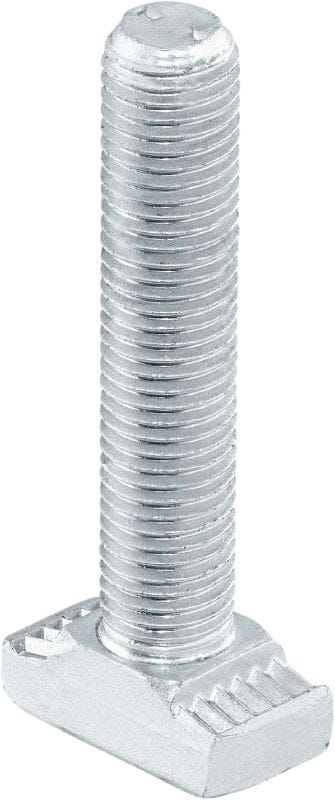

- Matching serrated teeth on the channel lips and bolts form a mechanical interlock – increasing the load resistance along the channel’s longitudinal axis
- Low torque moment for easier, faster and safer installation on site
- Universal fit – the same T-bolts can be used in both HAC-T50 and HAC-T70 anchor channels to help simplify logistics and reduce the scope for errors
Applications
- For use with HAC-T50 to HAC-T70 anchor channels
For approval or certificate information, please see individual items.
