MIC-E
New productItem #r6190

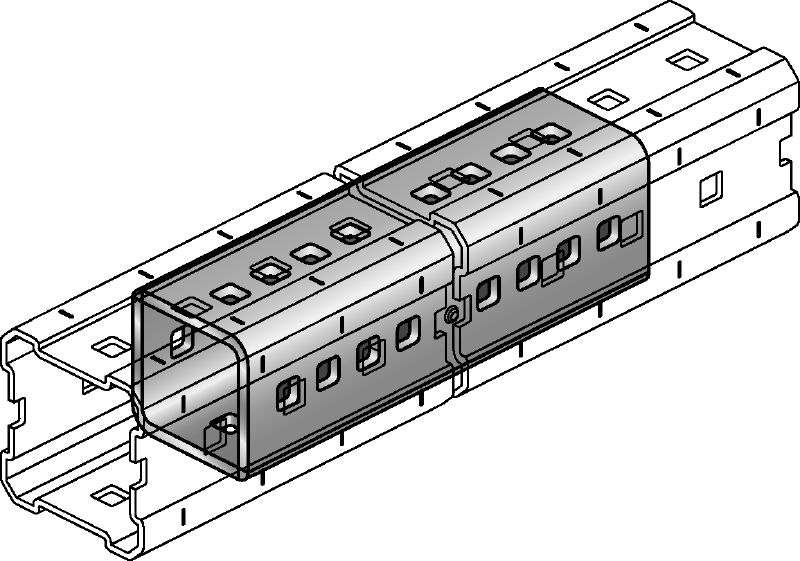

Hot-dip galvanised (HDG) connector used to connect MI girders longitudinally for long spans in heavy-duty applications
- Material composition: Connector: DD11 MOD - HN 555-4, S235JR - DIN EN 10025-2; Bolt: Steel grade 8.8; Nut: Steel grade 8
- Surface finish: HDG: connector 55 µm - DIN EN ISO 1461; bolt, nut 45 µm - DIN EN ISO 1461
- Environmental conditions: Outdoor, low to moderate pollution (C3 / C4 - low)
Share
Features & Applications
Features & Applications
Features
- Designed for faster and more efficient installation
- Positive locking hold for optimum transmission of forces and moments
- Connector comes with self-locking nuts to help protect against vibration
- Built-in stop helps prevent the extension sliding right inside the girder
Applications
- Connecting MI girders to each other longitudinally
